Product Detail

Model No.: JYH32-0903000

Production Capacity: 100000pcs/month

Delivery Date: 7-15days

Usage: Switching

Place of Origin: Guangdong,China

Efficiency: 80%

Operating temperature: 0~40C degree

Storage Humidity: 5%-90%

Warranty: 12 months

Means of Transport: Ocean,Land,Air

Packing: Use carton with white box o...

Output Type: DC

Connection: Plug In

Input Voltages: 100-240vac

Protection: short protection

Operating Humidity: 20%-85%

Size: 96*44*30mm

DC connector size: 5.5*2.1mm or 5.5*2.5mm or others
Product Dimension: 96*44*30MM
Length of DC cable: 0.9m (normal type) /1.2m/1.5m/1.8m/2m/3m

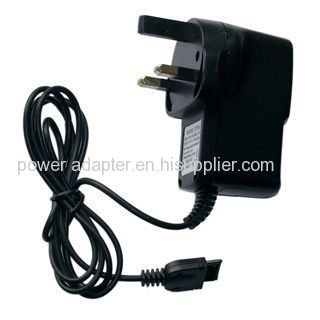

UK wall plug 9V 3A switching power adapter 100-240V AC

Product Description

Item	UK wall plug 9V 3A switching power adapter 100-240V AC
Input	100-240V AC 50/60Hz
Output power	27W
Output voltage	9V DC
Output current	3A
Protection	Overload protection
	Output over voltage protection
	Short circuit protection
Certificate	CEC power supply standard
	CE approved
	ROHS
	FCC
Efficiency	Meet CEC&Energy Star
Standard DC Connector for power adapter	2.00.7 & 2.50.75 & 3.51.35 & 4.01.7 &5.52.1 &5.52.5
No Load Power Consumption	≤0.3W at Rated Voltage
Ripple And Noise	Output voltage 1%
High-Voltage test	Primary to secondary: 3 kV 5 mA 60S
Leakage Current	0.5 mA(max) at input 240V AC
Operating Temperature Range	0--45°C
Storage Temperature Range	-20 --- 85°C
High Humidity Operation	+ 40 °C and 90 ~ 95% Humidity
MTBF	50,000 hours
Application	Mobile phone, TabletPC, MID, Bluetooth headset, Water purifier, LED, Medical machine,CCTV camera, LCD, Set-top box, DVR, Router, Modem,etc.
